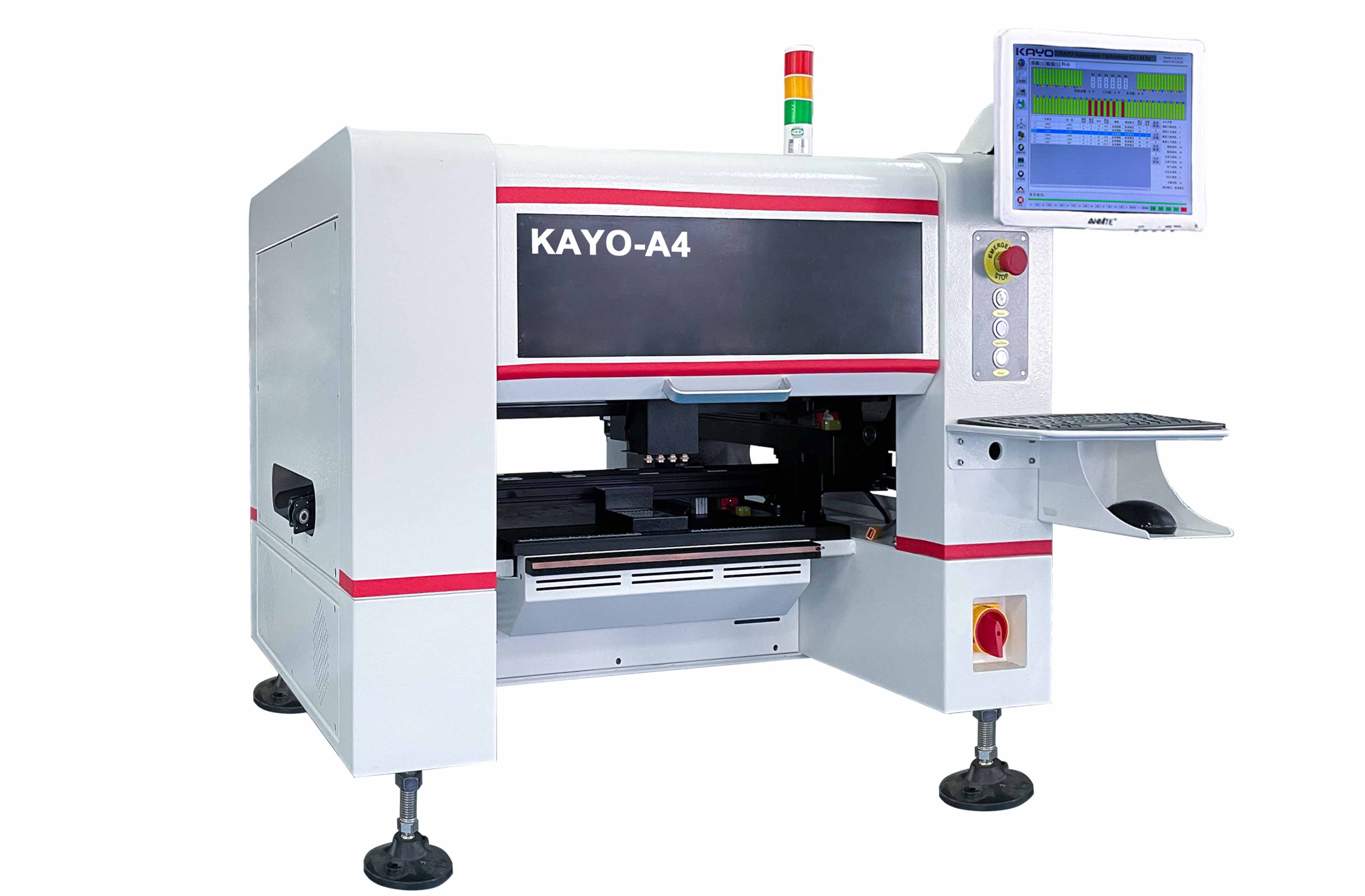

4 Heads KAYO-A4L

Product Dimensions:


Product Details:



Application For:


Product Advantages:


1. Optimized multi-functional conveyor (best positioning + no impact stopping), adopt a laser sensor rather than mechanical stopper to position. No rely on the PCB board size, shape, achieve the best positioning and no impact stop.


2. High Precision: Equipped with 6pcs of cameras: 1pc of Mark, 1pc of high precision, and 4pcs of high-speed recognition cameras, could effectively mount 0402-5050 components, beads, diodes, transistors, SOP, 45mm*45mm range pin pitch ≥0.3mm chip QFP-256, BGA etc.


3. Fast Speed: the max. mounting speed: 8000CPH, average mounting speed: 6000CPH.


4. Strong Stability: Panasonic Servo Motor and Drive, TBI precise linear guide and ball screw, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.


Product Specification:


Actual Placement Effect:


Whole Production line:

Program 1:


Program 2:


Program 3:
