8 Heating Zones KAYO-RF8845

Product Dimension:


Product Features:

1. Patented Innovative Insulation System: Adopt imported dual-layer insulation materials, to ensure the shell’s temperature of reflow oven is not higher than the indoor temperature in normal usage, greatly improving the reflow oven’s heating utilization ratio, power saving 40% than the same type of reflow oven, extremely reducing the electricity cost of reflow oven.

2. Adopt precise PLC + industrial PC control, operating stably to ensure the controlling system zero failure rate.

3. Multi-point air injection principle, the whole micro-circulation structure, up and down heating method, short runofthewind in the heating zones, high heating efficiency.

4. The overall machine adopts dual electric screw open mode, the electric screw’s outstanding features is: no need gas source, low requirement for the production facilities, with self-locking function, the cover will not fall when power off, safe operating, small energy consumption, no noise, 24V DC power supply, no harm to the human body.

5. Two-module strong ventilation and exhausted gas filtration system to ensure smooth discharge of exhausted gas in the oven and clean.

6. Strong forced cooling system, adopting high-pressure fan strongly transmit the cold air into the cooling zone, greatly improving the cooling rate, can effectively meet a variety of lead-free process.

7. Heating adopts imported special long-life wound-rotor nickel chromium heating wire, high thermal efficiency and sensitivity, small thermal inertia, the temperature controlling accuracy in each temperature zone is ±1℃; directly heating cycle air, heating up quickly, from room temperature to setting temperature about 15 minutes.

8. Imported Taiwan Sanyue radiating type high temperature motor, directly driving hot air heating, hot air balanced, small vibration, small noise.

9. Special transmission rail guide, made of high temperature and wear resistance stainless steel, high rigidity, lasting non-deformation.

10. Transmission system adopts frequency converter for stepless frequency conversion speed modulation, equipped with UPS uninterruptible power supply module group and manual shake function, can effectively prevent the PCB baked badly in the oven caused by sudden power failure.

11. Equipped with multi-functional computer operating analysis software, with flexible curve test and powerful dynamic curve analysis function, can be upgraded freely.

12. All the electrical components are imported, all the signal lines are shielded, to make the entire controlling system more stable and reliable.


Product Details:

1. PC controlling


2. Cooling Zone


3. Motor


4. Heating Pipe


5. Air Outlet

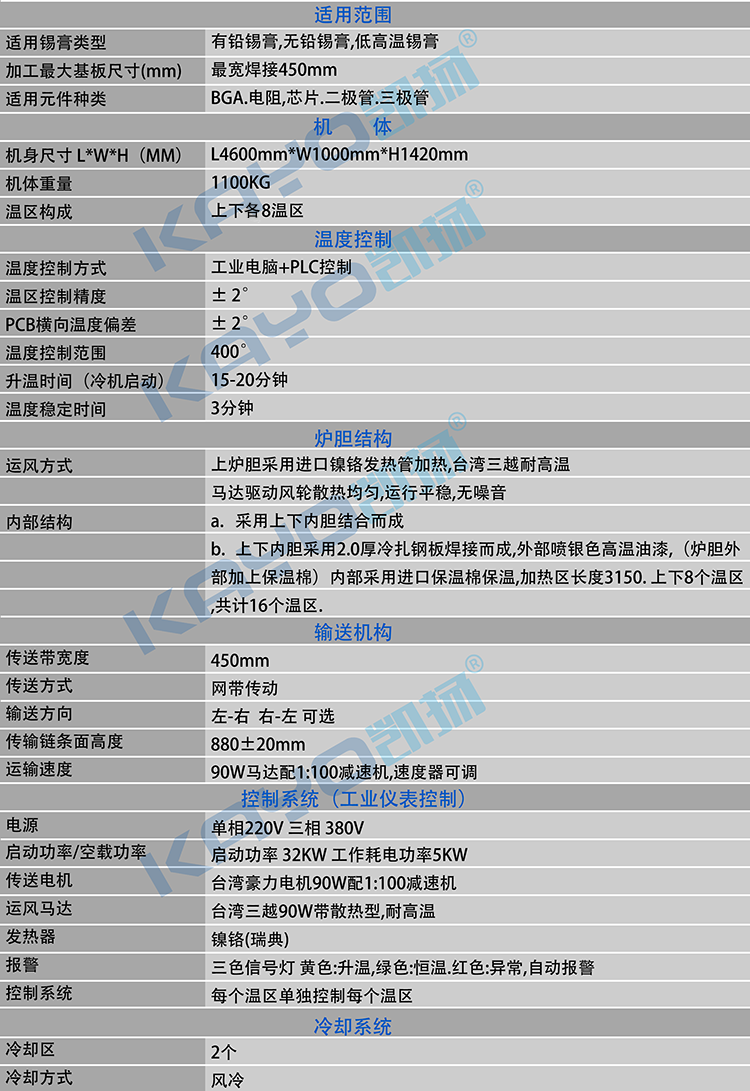

Products Specifications:
